What are in my shack at the moment

From top row:
1. OPEK 7-25 communication speaker
2. MFJ-259B HF/VHF SWR Analyzer
3. Linksys WRT54GL wireless AP/router

Middle row:
4. Yaesu FTM-10R dual band VHF/UHF
5. Diamond SX-200 SWR & Power Meter
6. TeleConcept SPS82500 switching power supply

Bottom row:
7. Yaesu FT-897 HF/VHF/UHF All Mode Transceiver
8. MFJ-949E Deluxe Versa Tuner II

Side of the cabinet:
9. Digital clock/thermo/calendar - GMT
10. VOIP phone

What are up in the air:
11. Diamond X200 UHF/VHF antenna
12. Diamond CP-6 80m-6m HF antenna
13. Diamond W8010 dipole - broadband antenna but only 10m/20m portion is up there

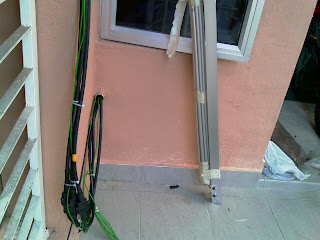

What near the earth:
14. RG214 connecting the CP-6 to the tuner
15. RG214 connecting the W8010 to the tuner
16. RG8 connecting the X200 to FTM10R
17. Three Diamond lightning arrestors as insurance :)

What in the cupboard or hiding under the table:
18. Yaesu FC-40 automatic antenna tuner for long wire
19. Buddystick HF portable antenna
20. Yaesu G-250 rotator
21. Diamond A144S10R 10-elemement 2meter Yagi
22. 3-element 10meter Yagi antenna from 9M2RZL
